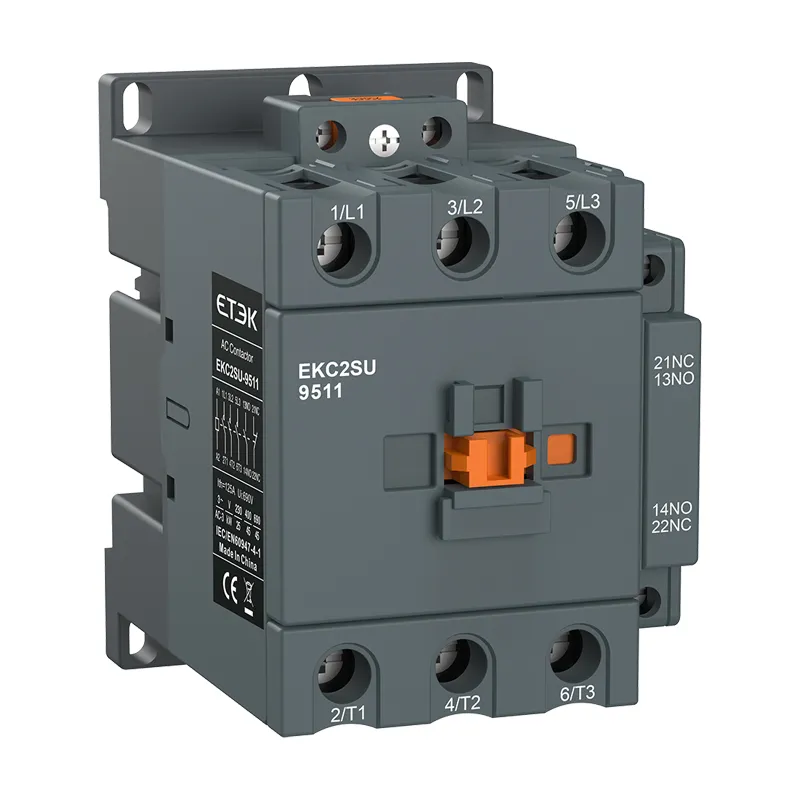

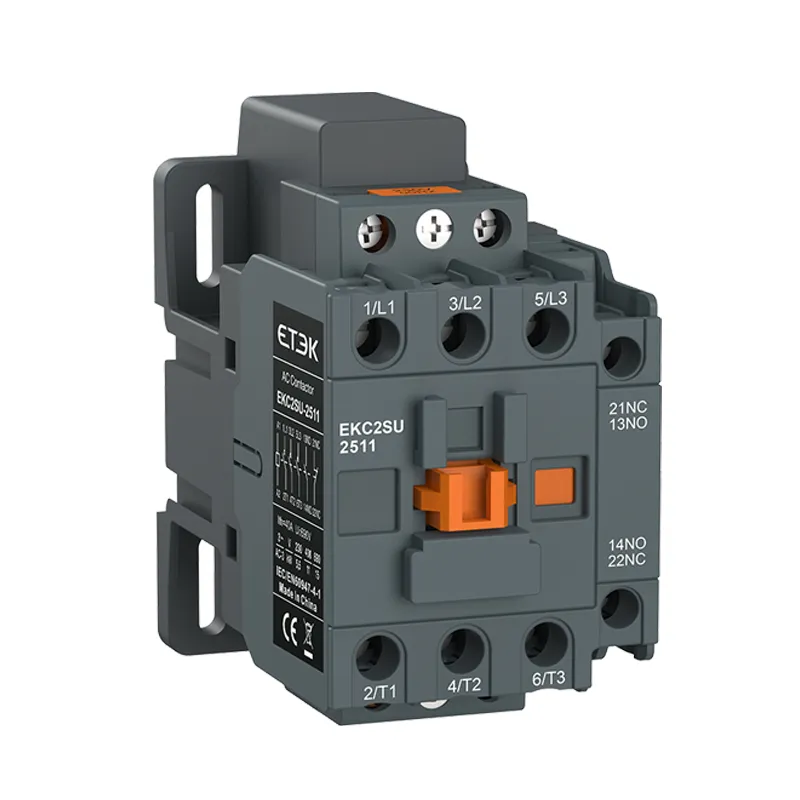

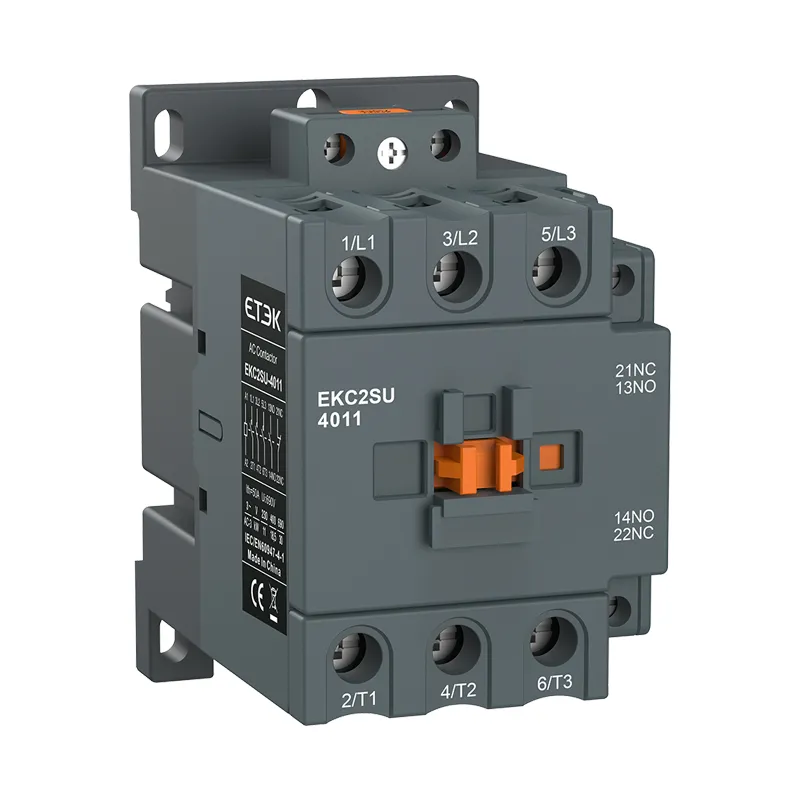

Mini contator EKC2-M 6~12A
Consulte
● Padrão: IEC60947-1, IEC60947-4-1
● Corrente nominal: 9-95A
● Tensão nominal de trabalho: AC220/230V; 380/400V; 660/690V
● Tensão da bobina: 24 V, 36 V, 48 V, 110 V, 230 V, 380 V, 415 V, 440 V
● Tensão de isolamento nominal: 690V
● Número de pólos: 3P
● Contato principal: 3NO
● Contato auxiliar: 1NO+1NC
● Método de instalação: instalação em trilho DIN ou parafuso
Os contatores CA da série EKC2SU são usados para controlar circuitos de motores trifásicos de até 690 V CA. Esses contatores são do tipo bloco com 3 polos principais. Construídos em contato auxiliar 1NO+1NC e supressão de surtos, resultando em economia de tempo e custo de instalação.
Comparados com contatores que usam supressores de surtos extremos, os produtos contatores que usam supressores de surtos integrados terão desempenho mais confiável e, ao mesmo tempo, os surtos são controlados pelo próprio contator e nunca chegam ao circuito de controle.
| Fonte de controle CA/CC | Tipo | EKC2SU-09 | EKC2SU-12 | EKC2SU-18 | EKC2SU-25 | EKC2SU-32 |
| Característica do circuito principal | ||||||
| Poloneses | 3P | |||||
| Contato principal | 3NÃO | |||||
| Tensão de isolamento nominal (Ui) | 690V | |||||
| Tensão operacional nominal (Ue) | CA 220/230 V; 380/400 V; 660/690 V | |||||
| Corrente térmica nominal (Ith), AC-1 | 20 | 20 | 32 | 40 | 50 | |
| Vida mecânica (×10 6 vezes) | 10 | 10 | 10 | 10 | 8 | |
| Vida elétrica (×10 3 vezes) | AC-3 | 1000 | 1000 | 1000 | 1000 | 800 |
| AC-4 | 200 | 200 | 200 | 200 | 200 | |
| Frequência de operação (tempo/h) | AC-3 | 1200 | 1200 | 1200 | 1200 | 600 |
| AC-4 | 300 | 300 | 300 | 300 | 300 | |
| Fonte de controle CA/CC | Tipo | EKC2SU-40 | EKC2SU-50 | EKC2SU-65 | EKC2W-80 | EKC2W-95 |
| Característica do circuito principal | ||||||
| Poloneses | 3P | |||||
| Contato principal | 3NÃO | |||||
| Tensão de isolamento nominal (Ui) | 690V | |||||
| Tensão operacional nominal (Ue) | CA 220/230 V; 380/400 V; 660/690 V | |||||
| Corrente térmica nominal (Ith), AC-1 | 60 | 80 | 80 | 100 | 125 | |
| Vida mecânica (×10 6 vezes) | 8 | 8 | 8 | 10 | 8 | |
| Vida elétrica (×10 3 vezes) | AC-3 | 600 | 600 | 600 | 600 | 600 |
| AC-4 | 150 | 150 | 150 | 100 | 100 | |
| Frequência de operação (tempo/h) | AC-3 | 600 | 600 | 600 | 600 | 600 |
| AC-4 | 300 | 300 | 300 | 300 | 300 | |
| Controle avaliado voltagem (nós) | 50Hz | CA/CC: 24~60 V, 110~250 V | ||||
| 50/60Hz | CA/CC: 24~60 V, 110~250 V | |||||
| Controle permitido tensão do circuito | Operação | (85%~110%)Nós | ||||
| Liberar | (20%~75%)Nós | |||||
| CA/CC 24-60 V CA/CC 110-250 V | Tempo de sucção (ms) | ≤120 | ||||
| Tempo de liberação (ms) | ≤90 | |||||
| Classificação de eficiência energética AC/DC | Nível 2 | |||||
| Características do circuito de controle | ||
| Controle avaliado voltagem (nós) | 50Hz | 24 V, 36 V, 48 V, 110 V, 230 V, 380 V, 415 V, 440 V |
| 50/60Hz | 24 V, 36 V, 48 V, 110 V, 230 V, 380 V, 415 V, 440 V | |
Controle permitido tensão do circuito | Operação | (85%~110%)Nós |
Liberar | (20%~75%)Nós | |
Supressores de surtos | Tipo RC | CA/CC 24 V, 36 V, 48 V, 110 V, 250 V, 380 V, 415 V, 440 V |
| Contatos auxiliares | ||
| Contato auxiliar embutido | 1NAO+1NF | |
| Corrente térmica nominal (Ith) | 10A | |
| Operacional nominal tensão (Ue) | CA | 380 V |
| CC | 220V | |
| Controle avaliado capacidade | AC-15 | 360VÁ |
| DC-13 | 33W | |
