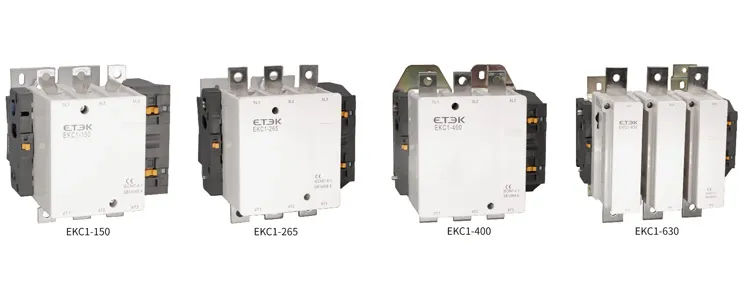

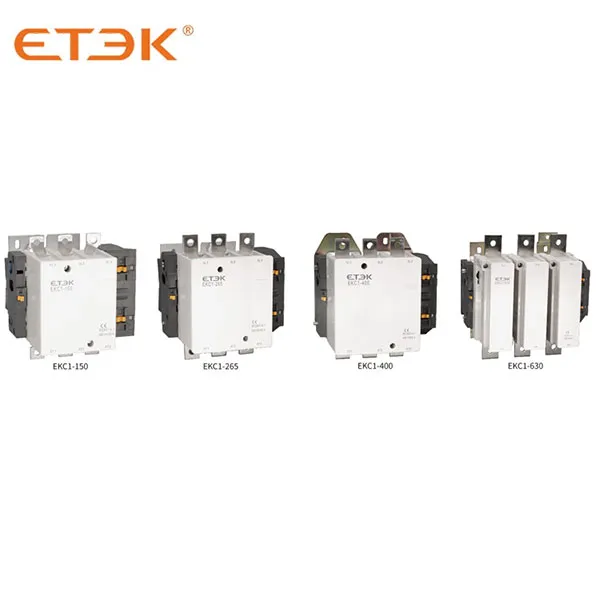

Contatores ETEK EKCC para comutação de capacitores, contator de serviço de capacitores
Consulte
| Aplicativo | circuitos de abertura e fechamento remotos |
| proteger o circuito contra sobrecarga ao montar com relé de sobrecarga térmica | |
| inicialização e controle frequentes do contator CA | |
| Valor elétrico | CA 50/60 Hz, 690 V, até 1000 A |
| Categoria de utilização | CA-3, CA-4 |
| Altitude | ≤2000m |
| Temperatura ambiente | -5℃~+40℃ |
| Categoria de montagem | Ⅲ |
| Condições de montagem | a inclinação entre o plano de montagem e o plano vertical não deve exceder ±5° |
| Padrão | IEC/EN 60947-4-1 |
Operação da bobina CA | Volts (VAC) | 24 | 36 | 42 | 48 | 110 | 127 | 220 | 230 | 240 | 380 | 415 | 440 | 480 | 500 | 600 | |
| Código | 50Hz | B5 | C5 | D5 | E5 | F5 | G5 | M5 | P5 | U5 | Q5 | N5 | R5 | - | S5 | Y5 | |
| 60Hz | B6 | - | D6 | E6 | F6 | G6 | M6 | 0 | U6 | Q6 | 0 | R6 | T6 | - | - | ||
| 50/60Hz | B7 | - | D7 | E7 | F7 | - | M7 | - | Q7 | R7 | - | - | - | ||||
Operação de bobina DC | Volts (VCC) | 12 | 24 | 36 | 48 | 110 | 220 |
| Código | JD | BD | CD | DE | FD | Doutor em Medicina |
| E.C. | C | 1 | 115 | 4 | Z |
Código da empresa | Contator | Sequência de projeto Nº. | Especificação básica, expressa com a corrente operacional nominal (380 V/400 V, AC3) | 4: Circuito principal 4P Em branco: Circuito principal 3P | Z: Operação DC Em branco: operação CA |
| Padrão | IEC/EN60947-4-1 | ||||||||||||
| Modelo nº. | EKC1-115 | EKC1-150 | EKC1-185 | EKC1-225 | EKC1-265 | EKC1-330 | EKC1-400 | EKC1-500 | EKC1-630 | EKC1-780 | EKC1-800 | EKC1-1000 | |
| Classificado como convencional Corrente de aquecimento | Eu(A) | 200 | 200 | 275 | 275 | 315 | 380 | 460 | 580 | 850 | 1200 | 850 | 1200 |
| Tensão nominal Ui(V) | Ui(V) | 690 | |||||||||||
| Corrente nominal de operação Ue=380/415V | AC-3 Ie(A) | 115 | 150 | 185 | 225 | 265 | 330 | 400 | 500 | 630 | 780 | 800 | 1000 |
| AC-4 Ie(A) | 52 | 60 | 79 | 86 | 105 | 117 | 138 | 147 | 188 | 240 | 195 | 320 | |
| Potência controlada 3ph Motor de gaiola AC-3 | 380/415 V kW | 55 | 75 | 90 | 110 | 132 | 160 | 200 | 250 | 335 | 400 | 400 | 500 |
| 660/690 V kW | 80 | 100 | 110 | 129 | 160 | 220 | 280 | 335 | 450 | 475 | 475 | 560 | |
| Vida elétrica (operações x103) | AC-3 | 600 | 600 | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 200 | 200 | 200 |
| AC-4 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 50 | 50 | 50 | |
| Vida mecânica (operações x106) | 6 | 6 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 2 | 3 | 2 | |
| Fusível Correspondente | Tamanho | RT16-1 | RT16-2 | RT16-2 | RT16-2 | RT16-2 | RT16-3 | RT16-3 | RT16-4 | RT16-4 | RT16-4 | RT16-4 | RT16-4 |
| UM | 200 | 225 | 315 | 315 | 355 | 450 | 500 | 630 | 800 | 1250 | 800 | 1250 | |
| Circuito principal | 3P ou 4P | ||||||||||||
| Modelo | Seção transversal do cabeamento (Cu) | tamanho do parafuso | Torque de aperto (Nm) | ||
| Número de peças | Seção transversal do cabo (mm2) | Barramento de cobre Seção transversal (mm2) | |||
| EKC1-115 | 1 | 70~90 | - | 3 | M6 |
| EKC1-150 | 1 | 70~90 | - | 6 | M8 |
| EKC1-185 | 1 | 95~150 | - | 6 | M8 |
| EKC1-225 | 1 | 95~150 | - | 10 | M10 |
| EKC1-265 | 1 | 120~185 | - | 10 | M10 |
| EKC1-330 | 1 | 185~240 | - | 10 | M10 |
| EKC1-400 | 1(2) | 240(150) | 30×5 | 10 | M10 |
| EKC1-500 | 2 | 150~185 | 40×5 | 10 | M10 |
| EKC1-630 | 2 | 185~240 | 50×5 | 14 | M12 |
| EKC1-800 | 2 | 185~240 | 50×5 | 14 | M12 |

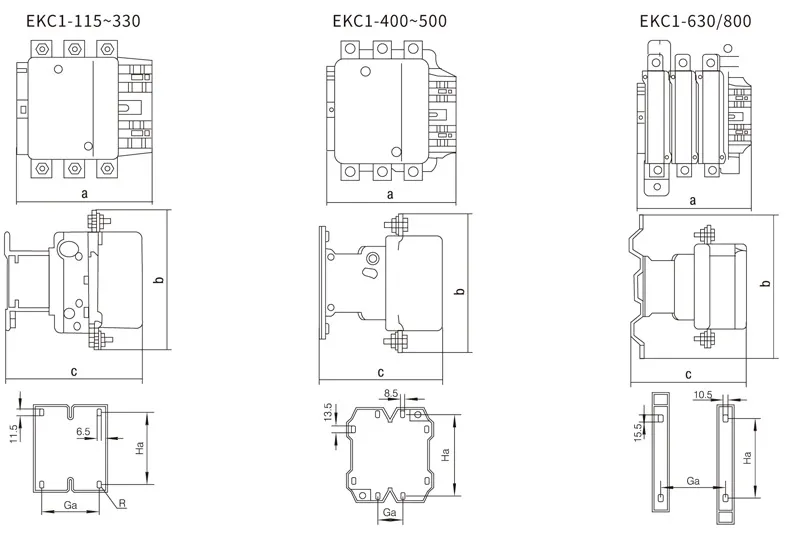

| Modelo | Um máximo | B máx. | C máx. |  |
| EKC1-115 | 163,5 | 162 | 171 | |
| EKC1-150 | 163,5 | 170 | 171 | |
| EKC1-185 | 168,5 | 174 | 181 | |
| EKC1-225 | 168,5 | 197 | 181 | |
| EKC1-265 | 201,5 | 203 | 213 | |
| EKC1-330 | 213 | 206 | 219 | |
| EKC1-400 | 213 | 206 | 219 | |
| EKC1-500 | 233 | 238 | 232 | |
| EKC1-630/800 | 309 | 304 | 255 |
